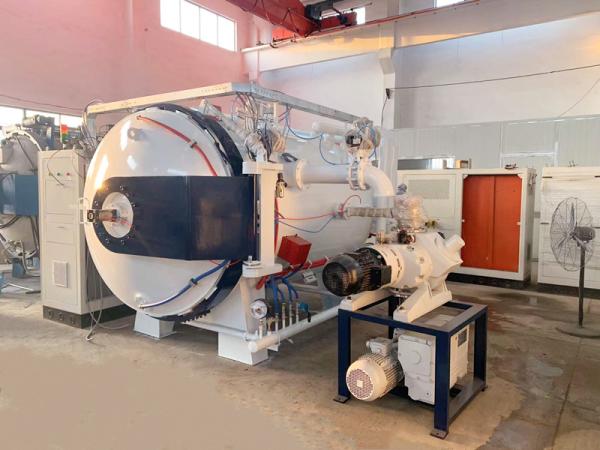

Cdocast High Quality Heat Treatment Vacuum Gas Quenching Furnace
For Sale
High temperature vacuum/atmosphere furnace is widely used in
ceramics, metallurgy, electronics, glass, chemical industry,
machinery, refractory materials, new material development, special
materials, building materials and other fields of production and
experiment. Usage: vacuum technology and heat treatment of the two
professional combination of comprehensive technology means that all
and part of the heat treatment process in the vacuum state. Vacuum
heat treatment furnace has high thermal efficiency, which can
realize rapid heating and cooling, no oxidation, no
decarburization, no carburization, can remove the phosphorus chips
on the surface of the workpiece, and has the effect of degreasing
and degassing, so as to achieve the effect of bright and clean
surface.
Application
Quenching of high speed steel, tool and die steel, stainless steel.
Solid solution treatment of stainless steel and titanium alloys.
Magnetic materials Vacuum heat treatment of magnetic materials.
High temperature brazing and vacuum sintering.
Performance features
Convection heating, to achieve rapid and uniform heating of
low-temperature strands.
The heating chamber structure in the furnace provides more uniform
heating, less power loss and energy saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans and high-efficiency copper-copper
heat exchangers achieve rapid cooling.
Alternate cooling method achieves uniform cooling and ensures
minimal deformation of the workpiece.
The cooling pressure and wind speed of the locomotive are
adjustable to achieve graded cooling.
The vertical furnace adopts screw drive, which is flexible, safe
and reliable.
Optional graphite or all-metal heating chamber.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
Specification
| Name | Vacuum Gas Quenching Furnace |
| Air Cooling Pressure | 2/4/6/10/15/20bar |
| Chamber Size | 400*300*300mm (Custom Made) |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Pressure Increasing Rate | 0.65/0.67/0.68pa/H |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Voltage | Optional Customized(220v/380v/660v) |
| Working Temperature | 0-1650 Degrees |
| Weight | 2t-35t |
| Amosphere Protect | Gas Protection |
| Furnace Structure | Double Shell With Water Cooling |
| Furnace Temperature Uniformity | ±5 .C |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing
For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
Valid zone | Maximum temperature (℃) | Heating power (kw) | Ultimate vacuum (Pa) | Gas cooling pressure (bar) |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
