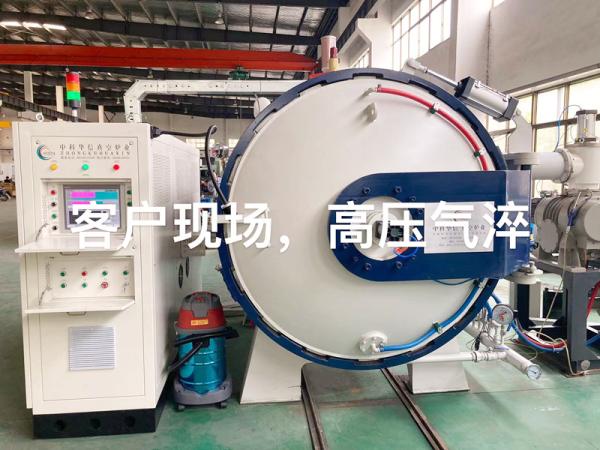

Single-chamber high-pressure High temperature vacuum gas quenching
furnace gas quenching vacuum furnace
Uses: 1.This equipment is mainly used for vacuum bright quenching
of tool steel, high-speed steel, die steel, stainless steel, spring
steel, aviation structural steel and other materials. Features: 1.
Convenient operation, manual/automatic free switching, fully
automatic control can be realized, fully avoiding human error in
the work process. 2. With perfect alarm system, it can effectively
provide protection for the equipment. 3. Double chain frequency
conversion transmission is adopted, the transmission is stable and
the speed can be adjusted. Selection reference: 1. Users can choose
graphite heater or metal heater according to the actual situation
of the enterprise. 2. In addition to the company's conventional
models, according to user requirements for users to design a
variety of special specifications for the vacuum furnace.
Application
Quenching of high speed steel, tool and die steel, stainless steel.
Solid solution treatment of stainless steel and titanium alloys.
Magnetic materials Vacuum heat treatment of magnetic materials.
High temperature brazing and vacuum sintering.
Performance features
Convection heating, to achieve rapid and uniform heating of
low-temperature strands.
The heating chamber structure in the furnace provides more uniform
heating, less power loss and energy saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans and high-efficiency copper-copper
heat exchangers achieve rapid cooling.
Alternate cooling method achieves uniform cooling and ensures
minimal deformation of the workpiece.
The cooling pressure and wind speed of the locomotive are
adjustable to achieve graded cooling.
The vertical furnace adopts screw drive, which is flexible, safe
and reliable.
Optional graphite or all-metal heating chamber.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
Specification
| Name | Vacuum Gas Quenching Furnace |
| Air Cooling Pressure | 2/4/6/10/15/20bar |
| Chamber Size | 400*300*300mm (Custom Made) |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Pressure Increasing Rate | 0.65/0.67/0.68pa/H |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Voltage | Optional Customized(220v/380v/660v) |
| Working Temperature | 0-1650 Degrees |
| Weight | 2t-35t |
| Amosphere Protect | Gas Protection |
| Furnace Structure | Double Shell With Water Cooling |
| Furnace Temperature Uniformity | ±5 .C |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing
For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
Valid zone | Maximum temperature (℃) | Heating power (kw) | Ultimate vacuum (Pa) | Gas cooling pressure (bar) |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
