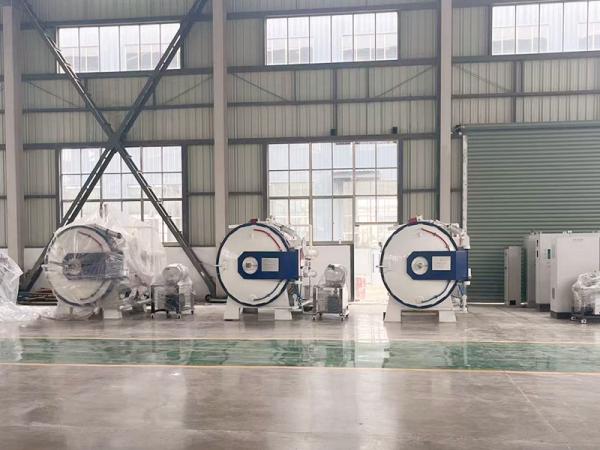

Industrial Heat Treatment Furnace Steel Oil Quenching Gas Cooling
Vacuum Furnace For Sale
1.This equipment has heating chamber and cooling chamber, high
production efficiency, energy (electricity) can be saved;
2.Heating chamber can use soft blanket, hard blanket and metal
screen;
3.Compared with ordinary furnace, the parts surface brightness is
good after processing, and the service life increase 30%;
4.Can also according to customer's needs, design and produce
non-standard customized products.
use:
Bright quenching, tempering, oil quenching or pressurized (high
pressure) gas quenching of alloy steel, high speed steel, tool and
die steel, bearing steel, spring steel, stainless steel and other
materials.
Vacuum heat treatment of magnetic materials and hard gold, high
temperature vacuum brazing and vacuum sintering.
Features:
Convection heating achieves rapid and uniform heating of the
low-temperature section. The heating chamber structure in the
furnace provides more uniform heating, low power loss and energy
saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans, high-efficiency copper-copper
heat exchangers. Achieve rapid cooling and alternate cooling
methods to achieve uniform cooling and ensure minimal deformation
of the workpiece.
The cooling pressure and fan speed are adjustable to achieve graded
quenching. The vertical furnace adopts screw drive and has flexible
movement: it is safe and reliable. Graphite and all-metal heating
chambers can be used.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
Specification
| Name | Vacuum Gas Quenching Furnace |
| Air Cooling Pressure | 2/4/6/10/15/20bar |
| Chamber Size | 400*300*300mm (Custom Made) |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Pressure Increasing Rate | 0.65/0.67/0.68pa/H |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Voltage | Optional Customized(220v/380v/660v) |
| Working Temperature | 0-1650 Degrees |
| Weight | 2t-35t |
| Amosphere Protect | Gas Protection |
| Furnace Structure | Double Shell With Water Cooling |
| Furnace Temperature Uniformity | ±5 .C |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing
For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
Valid zone | Maximum temperature (℃) | Heating power (kw) | Ultimate vacuum (Pa) | Gas cooling pressure (bar) |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
