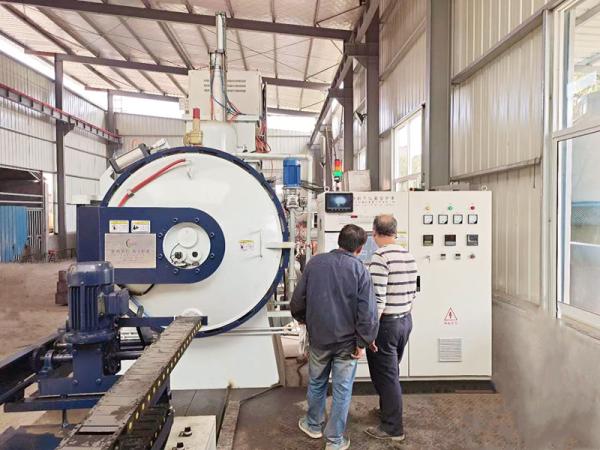

Chinese factory price energy-saving vacuum double chamber oil
quenching furnace
Uses:
1.This equipment is mainly used for vacuum bright quenching of tool
steel, high-speed steel, die steel, stainless steel,
spring steel, aviation structural steel and other materials.
Features:
1.Convenient operation, manual/automatic free switching, fully
automatic control can be realized, fully avoiding human error in
the work process.
2. With perfect alarm system, it can effectively provide protection
for the equipment.
3. Double chain frequency conversion transmission is adopted, the
transmission is stable and the speed can be adjusted.
Specification
| Usage | Vacuum Oil Quenching Furnace |
| Voltage | Optional Customized(220v/380v/660v) |
| Oil tank Capacity | 800L to 14000L(depend on model) |
| Loading capacity | 50-1500kg (adjustable) |
| Vacuum system | Leybold, EVP, Edwards, Kinney |
| Heater | Mo belt, Tungsten, Graphite, SiMo, SiC |
| Max temperature | 1300℃ (custom made) |
| Power (kW) | 36-500kw |
| Applicable Industries | Brazing industry |
| Dimension(L*W*H) | 300*300*500-700*700*1200(can customized) |
| Heating element | MoSi2 Heating / Graphite Heating |
| Furnace type | Vacuum Furnace |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Pressure rise rate | ≤0.5 Pa/h |
Application
Bright quenching, tempering, oil quenching or pressurized (high
pressure) gas quenching of alloy steel, high speed steel, tool and
die steel, bearing steel, spring steel, stainless steel and other
materials.
Vacuum heat treatment of magnetic materials and hard gold, high
temperature vacuum brazing and vacuum sintering.
Features
Convection heating achieves rapid and uniform heating of the
low-temperature section. The heating chamber structure in the
furnace provides more uniform heating, low power loss and energy
saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans, high-efficiency copper-copper
heat exchangers. Achieve rapid cooling and alternate cooling
methods to achieve uniform cooling and ensure minimal deformation
of the workpiece.
The cooling pressure and fan speed are adjustable to achieve graded
quenching. The vertical furnace adopts screw drive and has flexible
movement: it is safe and reliable. Graphite and all-metal heating
chambers can be used.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
