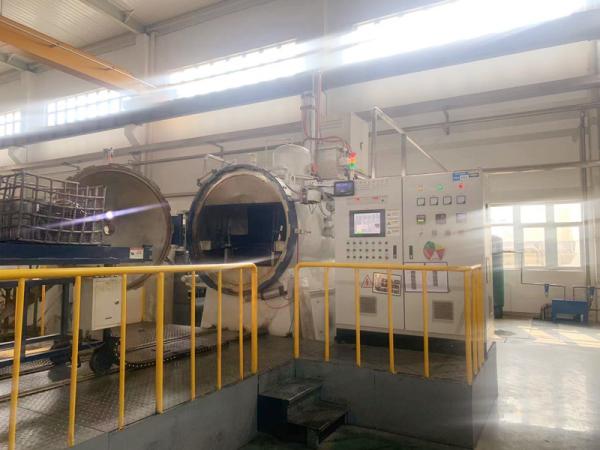

Heat Treatment Furnace Oil Quenching Vacuum Furnace GCr15
By employing vacuum pumps and a secure sealing mechanism, the
furnace achieves and maintains the required vacuum conditions,
preventing the presence of air and impurities. This results in a
clean and controlled quenching environment, ideal for achieving
precise heat treatment outcomes.
Equipped with advanced heating elements, the furnace ensures
uniform heating throughout the chamber. These elements are
engineered to withstand the high temperatures necessary for the
heat treatment process.
Specification
| Usage | Vacuum Oil Quenching Furnace |
| Voltage | Optional Customized(220v/380v/660v) |
| Oil tank Capacity | 800L to 14000L(depend on model) |
| Loading capacity | 50-1500kg (adjustable) |
| Vacuum system | Leybold, EVP, Edwards, Kinney |
| Heater | Mo belt, Tungsten, Graphite, SiMo, SiC |
| Max temperature | 1300℃ (custom made) |
| Power (kW) | 36-500kw |
| Applicable Industries | Brazing industry |
| Dimension(L*W*H) | 300*300*500-700*700*1200(can customized) |
| Heating element | MoSi2 Heating / Graphite Heating |
| Furnace type | Vacuum Furnace |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Pressure rise rate | ≤0.5 Pa/h |
Application
Bright quenching, tempering, oil quenching or pressurized (high
pressure) gas quenching of alloy steel, high speed steel, tool and
die steel, bearing steel, spring steel, stainless steel and other
materials.
Vacuum heat treatment of magnetic materials and hard gold, high
temperature vacuum brazing and vacuum sintering.
Features
Convection heating achieves rapid and uniform heating of the
low-temperature section. The heating chamber structure in the
furnace provides more uniform heating, low power loss and energy
saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans, high-efficiency copper-copper
heat exchangers. Achieve rapid cooling and alternate cooling
methods to achieve uniform cooling and ensure minimal deformation
of the workpiece.
The cooling pressure and fan speed are adjustable to achieve graded
quenching. The vertical furnace adopts screw drive and has flexible
movement: it is safe and reliable. Graphite and all-metal heating
chambers can be used.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
