High Temperature Vacuum Hardening Sintering Melting Brazing
Furnace, Heat Treatment Vacuum Furnace Price Low
Vacuum brazing is a process in which the solder with a lower
melting point than the base metal is melted and the joint gap is
filled by capillary action to obtain a non-detachable joint. In
recent years, with the continuous development of science and
technology, brazing technology occupies an increasingly important
position in various industrial sectors, especially in electrical
instrumentation and national defense industries, it has become an
irreplaceable process method. For example, complex-shaped heat
exchangers (oil coolers, evaporators and radiators, etc.) used in
large oxygen generators, automobiles and ships, complex-shaped
honeycomb structures, electrical parts, and precision mechanical
parts in jet engines must be Brazing is used. In recent years, the
brazing process has developed very rapidly. The brazing technology
has been developed from the original application in the national
defense industry such as aircraft and nuclear energy to ordinary
metals and practical components.

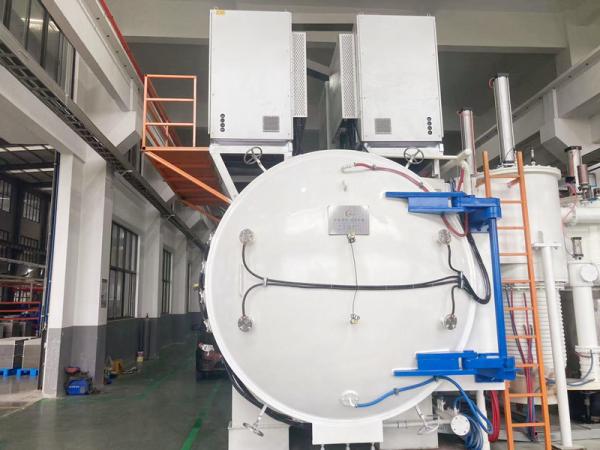

This product is composed of furnace body, heating element, vacuum
system, thermocouple, PLC and other components. The control system
adopts products from developed countries such as Siemens, and the
furnace body, heating components, and vacuum system can be
customized according to requirements.
Specification
| Name | Vacuum Brazing Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 10~0.001pa |
| Voltage | Optional Customized(110V/220v/380v/660v) |
| Weight | 2t-35t |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing
For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
| Chamber material | Cast iron, stainless steel, optional |
| Application | Metal brazing |
| Usage | Brazing Furnace |
| Max Temperature | 1200C - 1700C |
| Continue Operating Temp. | 1600℃ |
| heating rate | 0-20C/min. |
| temperature accuracy | +/-1C |
| Power Source | Electric |
Application
Vacuum brazing furnace is used for vacuum brazing of stainless
steel, carbon steel, titanium alloy, tool and die steel, carbide,
non-ferrous metals, etc.
Vacuum diffusion welding furnace is used for diffusion welding of
various metal materials and ceramic materials.
Vacuum aluminum brazing furnace is used for aluminum brazing of
heat exchangers and electronic communication components for
automobiles, aircraft, ships, compressors, air separation
equipment, household appliances, etc.
Performance characteristics
Multi-zone heating and multi-zone temperature control ensure good
working temperature uniformity.
Good working vacuum and pressure rise rate, good surface quality of
workpiece.
A variety of furnace types are available, including horizontal,
double-chamber, and three-chamber semi-continuous.
