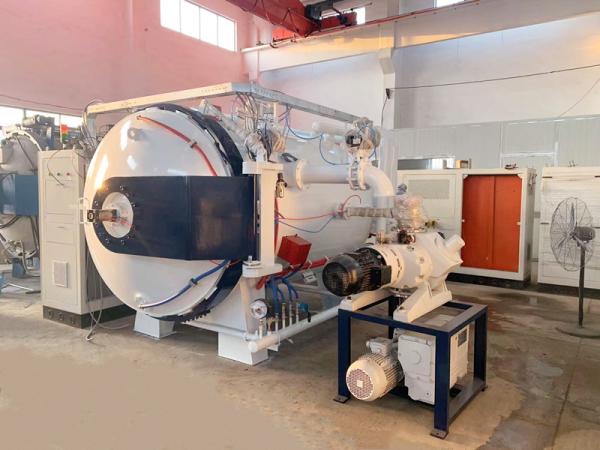

Remote control electric graphite vacuum high-pressure gas quenching
furnace
Usage:The rapid solution of Aluminum wheel,Aluminum cast and other
Aluminum alloy parts.
Features:
1.The shell is made by high-quality steel of 3mm thick.And the
lining is a kind of Composite structure with insulating refractory
brick and Aluminosilicate Fiber board.
2.The door is drivered by cylinder to make sure the seal.
3.Temperature Control system including Intelligent Digital Display
Temperature Controller and Temperature Record.
4.After heating, the parts transfer to cistern less than 10seconds.
Application
Quenching of high speed steel, tool and die steel, stainless steel.
Solid solution treatment of stainless steel and titanium alloys.
Magnetic materials Vacuum heat treatment of magnetic materials.
High temperature brazing and vacuum sintering.
Performance features
Convection heating, to achieve rapid and uniform heating of
low-temperature strands.
The heating chamber structure in the furnace provides more uniform
heating, less power loss and energy saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans and high-efficiency copper-copper
heat exchangers achieve rapid cooling.
Alternate cooling method achieves uniform cooling and ensures
minimal deformation of the workpiece.
The cooling pressure and wind speed of the locomotive are
adjustable to achieve graded cooling.
The vertical furnace adopts screw drive, which is flexible, safe
and reliable.
Optional graphite or all-metal heating chamber.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
Specification
| Name | Vacuum Gas Quenching Furnace |
| Air Cooling Pressure | 2/4/6/10/15/20bar |
| Chamber Size | 400*300*300mm (Custom Made) |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Pressure Increasing Rate | 0.65/0.67/0.68pa/H |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Voltage | Optional Customized(220v/380v/660v) |
| Working Temperature | 0-1650 Degrees |
| Weight | 2t-35t |
| Amosphere Protect | Gas Protection |
| Furnace Structure | Double Shell With Water Cooling |
| Furnace Temperature Uniformity | ±5 .C |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing
For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
Valid zone | Maximum temperature (℃) | Heating power (kw) | Ultimate vacuum (Pa) | Gas cooling pressure (bar) |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
