    Horizontal Oil Quenching Furnace Vacuum Heat Treating Services

    Ask Lasest Price
    Brand Name : Cabory
    Price : Negotiation
    Delivery Time : 60 Days
    Payment Terms : L/C, T/T
    Supply Ability : 20 Set/Sets per Month
    • Product Details
    • Company Profile

    Horizontal Oil Quenching Furnace Vacuum Heat Treating Services

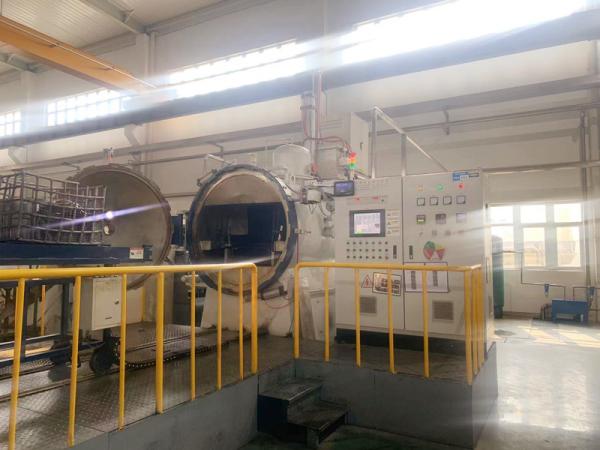

    Horizontal vacuum double chamber oil quenching furnace vacuum oil quenching vacuum furnace


    The vacuum oil quenching furnace offers several advantages over other quenching methods. The vacuum conditions prevent oxidation and minimize the formation of scale on the material's surface, resulting in clean and uniform quenching. The controlled cooling rates minimize distortion and reduce the need for subsequent machining operations. Additionally, the vacuum environment allows for precise control of heat treatment parameters, leading to consistent and reliable results.

    In conclusion, the vacuum oil quenching furnace is a specialized heat treatment equipment that provides precise and controlled cooling of materials in an oil bath under vacuum conditions. Its ability to operate in a vacuum environment, coupled with the use of oil as the quenching medium, ensures improved material properties and dimensional stability. This furnace is widely used in industries such as aerospace, automotive, and tool manufacturing where high-quality and reliable heat treatment processes are required.

    Specification

    UsageVacuum Oil Quenching Furnace
    VoltageOptional Customized(220v/380v/660v)
    Oil tank Capacity800L to 14000L(depend on model)
    Loading capacity50-1500kg (adjustable)
    Vacuum systemLeybold, EVP, Edwards, Kinney
    HeaterMo belt, Tungsten, Graphite, SiMo, SiC
    Max temperature1300℃ (custom made)
    Power (kW)36-500kw
    Applicable IndustriesBrazing industry
    Dimension(L*W*H)300*300*500-700*700*1200(can customized)
    Heating elementMoSi2 Heating / Graphite Heating
    Furnace typeVacuum Furnace
    Ultimate Vacuum3.0*10-4 Pa
    StructureHorizontal, Vertical, Batch, Continuous
    Pressure rise rate≤0.5 Pa/h

    Application

    Bright quenching, tempering, oil quenching or pressurized (high pressure) gas quenching of alloy steel, high speed steel, tool and die steel, bearing steel, spring steel, stainless steel and other materials.

    Vacuum heat treatment of magnetic materials and hard gold, high temperature vacuum brazing and vacuum sintering.


    Features

    Convection heating achieves rapid and uniform heating of the low-temperature section. The heating chamber structure in the furnace provides more uniform heating, low power loss and energy saving.

    Using a new type of carbon felt composite material, it is resistant to high temperature and high pressure airflow erosion, and the heat shield has a longer service life and is easier to maintain.

    High-speed and high-pressure fans, high-efficiency copper-copper heat exchangers. Achieve rapid cooling and alternate cooling methods to achieve uniform cooling and ensure minimal deformation of the workpiece.

    The cooling pressure and fan speed are adjustable to achieve graded quenching. The vertical furnace adopts screw drive and has flexible movement: it is safe and reliable. Graphite and all-metal heating chambers can be used.

    Optional fully intelligent industrial computer control and a manual operating system are available, which are easy to learn, understand and operate.
