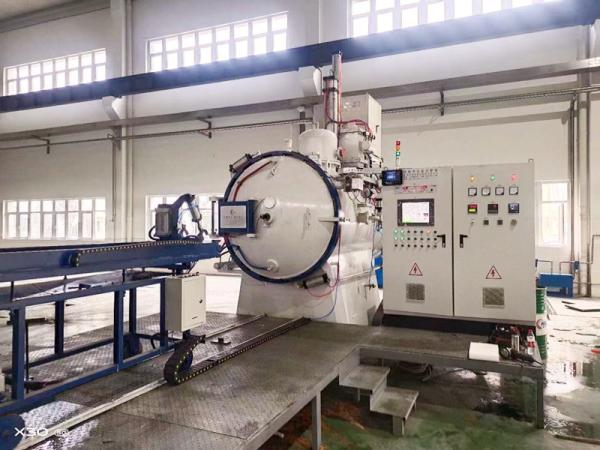

Vacuum oil quenching gas cooling furnace for tool die steel
treatment
A vacuum oil quenching furnace is a specialized heat treatment
equipment used for the rapid cooling of materials in an oil bath
under vacuum conditions. This furnace offers precise control over
the quenching process, resulting in enhanced material properties
and reduced distortion.
The vacuum oil quenching furnace consists of a sealed chamber
capable of withstanding high temperatures and vacuum conditions.
Inside the chamber, there is an oil bath that serves as the
quenching medium. The oil is selected based on the specific
material and desired quenching characteristics.
Specification
| Usage | Vacuum Oil Quenching Furnace |
| Voltage | Optional Customized(220v/380v/660v) |
| Oil tank Capacity | 800L to 14000L(depend on model) |
| Loading capacity | 50-1500kg (adjustable) |
| Vacuum system | Leybold, EVP, Edwards, Kinney |
| Heater | Mo belt, Tungsten, Graphite, SiMo, SiC |
| Max temperature | 1300℃ (custom made) |
| Power (kW) | 36-500kw |
| Applicable Industries | Brazing industry |
| Dimension(L*W*H) | 300*300*500-700*700*1200(can customized) |
| Heating element | MoSi2 Heating / Graphite Heating |
| Furnace type | Vacuum Furnace |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Pressure rise rate | ≤0.5 Pa/h |
Application
Bright quenching, tempering, oil quenching or pressurized (high
pressure) gas quenching of alloy steel, high speed steel, tool and
die steel, bearing steel, spring steel, stainless steel and other
materials.
Vacuum heat treatment of magnetic materials and hard gold, high
temperature vacuum brazing and vacuum sintering.
Features
Convection heating achieves rapid and uniform heating of the
low-temperature section. The heating chamber structure in the
furnace provides more uniform heating, low power loss and energy
saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans, high-efficiency copper-copper
heat exchangers. Achieve rapid cooling and alternate cooling
methods to achieve uniform cooling and ensure minimal deformation
of the workpiece.
The cooling pressure and fan speed are adjustable to achieve graded
quenching. The vertical furnace adopts screw drive and has flexible
movement: it is safe and reliable. Graphite and all-metal heating
chambers can be used.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
