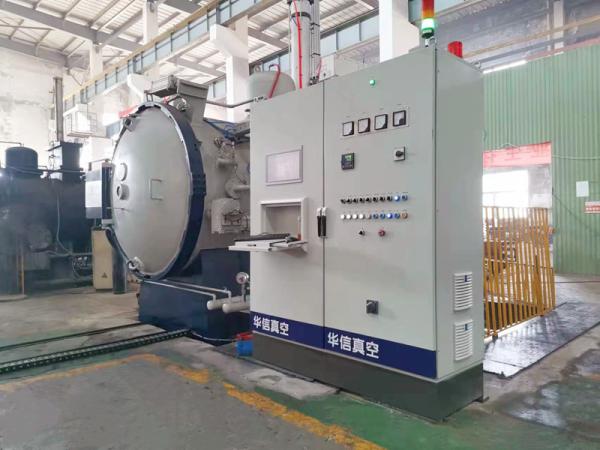

cheap oil quenching vacuum furnace price heat treatment furnace
made in china shanghai
1.The furnace chamber is modularly designed,and the temperature
uniformity is excellent; 2.The heating elements adopt non-ceramic
support technologyso there is no need to worry about the
degradation of insulation performance after 5 yearslong-term use;
3.The internal material truck adopts a superimposed integral
telescopic structure,frequency conversion speed regulation, stable
material transfer,and executes the"slow-fast-slowrunning rhythmand
the transfer time is short; 4.Internal heat exchanger and forced
air circulation cooling method,the jet gas is uniform and the flow
rate is large,and the cooling speed is fast; 5.The quenching oil
tank has a large capacity,and the hot oil is cooled by the external
circulation of the hot oil pump and the heat exchanger,and the
cooling of the quenching oil is better; 6.Double selection of oil
stirring and oil jet cooling methodssuitable for different types of
workpieces with small deformation; 7.For products of the same
specification,the furnace capacity is large and the efficiency is
high; 8.Fully automatic external feeder,remote control
operation,only one operator is needed for loading and unloading.
Specification
| Usage | Vacuum Oil Quenching Furnace |
| Voltage | Optional Customized(220v/380v/660v) |
| Oil tank Capacity | 800L to 14000L(depend on model) |
| Loading capacity | 50-1500kg (adjustable) |
| Vacuum system | Leybold, EVP, Edwards, Kinney |
| Heater | Mo belt, Tungsten, Graphite, SiMo, SiC |
| Max temperature | 1300℃ (custom made) |
| Power (kW) | 36-500kw |
| Applicable Industries | Brazing industry |
| Dimension(L*W*H) | 300*300*500-700*700*1200(can customized) |
| Heating element | MoSi2 Heating / Graphite Heating |
| Furnace type | Vacuum Furnace |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Pressure rise rate | ≤0.5 Pa/h |
Application
Bright quenching, tempering, oil quenching or pressurized (high
pressure) gas quenching of alloy steel, high speed steel, tool and
die steel, bearing steel, spring steel, stainless steel and other
materials.
Vacuum heat treatment of magnetic materials and hard gold, high
temperature vacuum brazing and vacuum sintering.
Features
Convection heating achieves rapid and uniform heating of the
low-temperature section. The heating chamber structure in the
furnace provides more uniform heating, low power loss and energy
saving.
Using a new type of carbon felt composite material, it is resistant
to high temperature and high pressure airflow erosion, and the heat
shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans, high-efficiency copper-copper
heat exchangers. Achieve rapid cooling and alternate cooling
methods to achieve uniform cooling and ensure minimal deformation
of the workpiece.
The cooling pressure and fan speed are adjustable to achieve graded
quenching. The vertical furnace adopts screw drive and has flexible
movement: it is safe and reliable. Graphite and all-metal heating
chambers can be used.
Optional fully intelligent industrial computer control and a manual
operating system are available, which are easy to learn, understand
and operate.
